LM8UU Ball Bearings

LM series ; LMH series; LMF series; LMEH series; LMEF series; LME series; LMK series;

Linear bearing is a kind of linear motion system, used for linear stroke and cylindrical shaft. Because the load-bearing ball is in point contact with the bearing jacket, the steel ball rolls with the least frictional resistance.

Linear bearings are used in conjunction with hardened linear drive shafts. A system of infinite linear motion. Because the load ball and the hardened transmission shaft are in point contact, the allowable load is small, but when moving in a straight line, the friction resistance is the smallest, the precision is high, and the movement is fast.

Standard type, clearance adjustment type linear bearings, open type linear bearings, extended linear bearings, general-purpose linear bearings

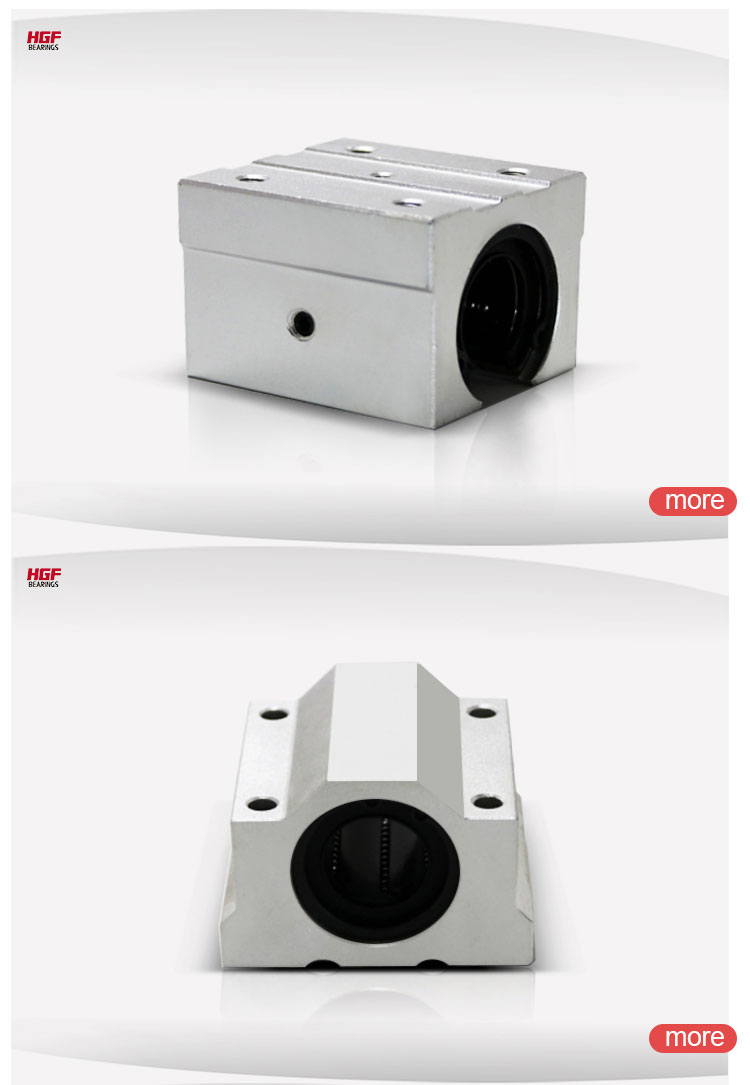

Flanged linear bearings can be divided into: round flange type, method flange type, oval flange type, guided round flange type, guided method blue type, guided oval flange type, and extended round flange type.

Linear bearings are more and more widely used in precision equipment such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, tool machinery, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment Or in the special machinery industry.

Contact Now

Product Details

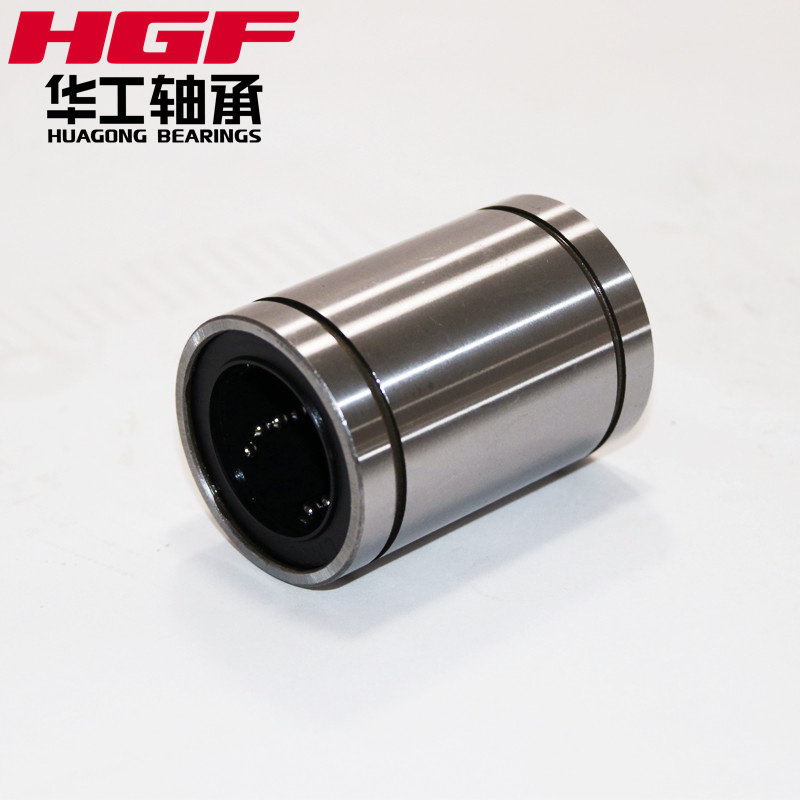

LM8UU Linear Ball Bearings

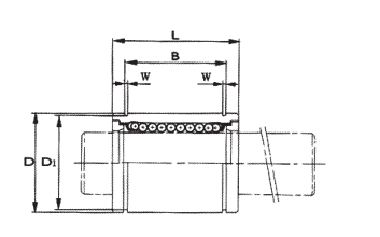

Sealed type	d mm	D mm	L mm	≈ KGS	Open type
Sealed type	d mm	D mm	L mm	≈ KGS	Open type
LM 5 UU	5	10	15	0.004
LM 6 UU	6	12	19	0.008
LM 8 UU	8	15	24	0.016
LM 10 UU	10	19	29	0.030
LM 12 UU	12	21	30	0.032	LM 12 OP
LM 13 UU	13	23	32	0.043	LM 13 OP
LM 16 UU	16	28	37	0.069	LM 16 OP
LM 20 UU	20	32	42	0.087	LM 20 OP
LM 25 UU	25	40	59	0.220	LM 25 OP
LM 30 UU	30	45	64	0.250	LM 30 OP
LM 35 UU	35	52	70	0.390	LM 35 OP
LM 40 UU	40	60	80	0.590	LM 40 OP
LM 50 UU	50	80	100	1.580	LM 50 OP
LM 60 UU	60	90	110	2.000	LM 60 OP

Product information:

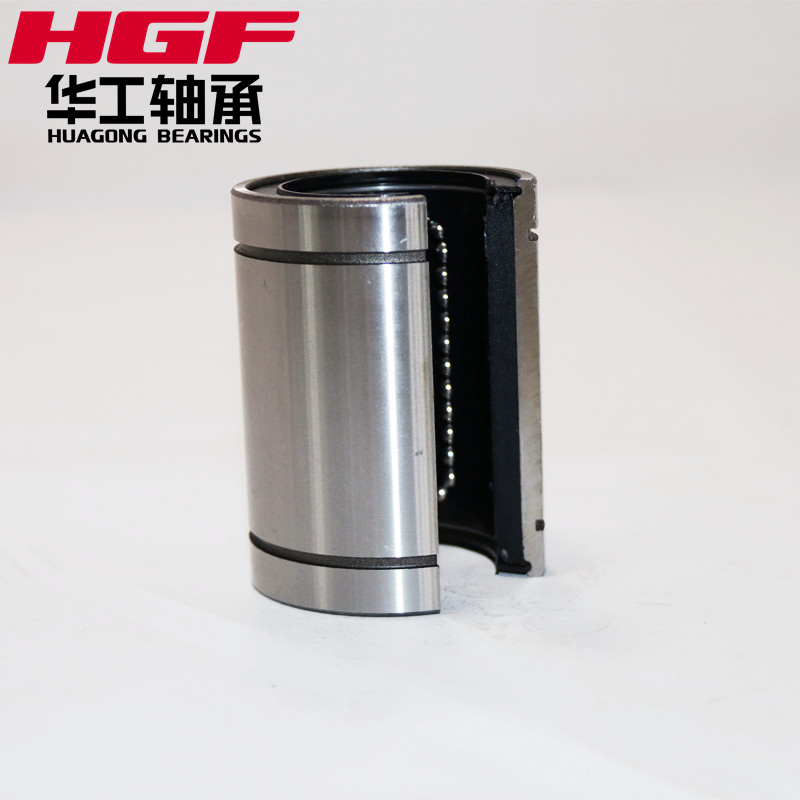

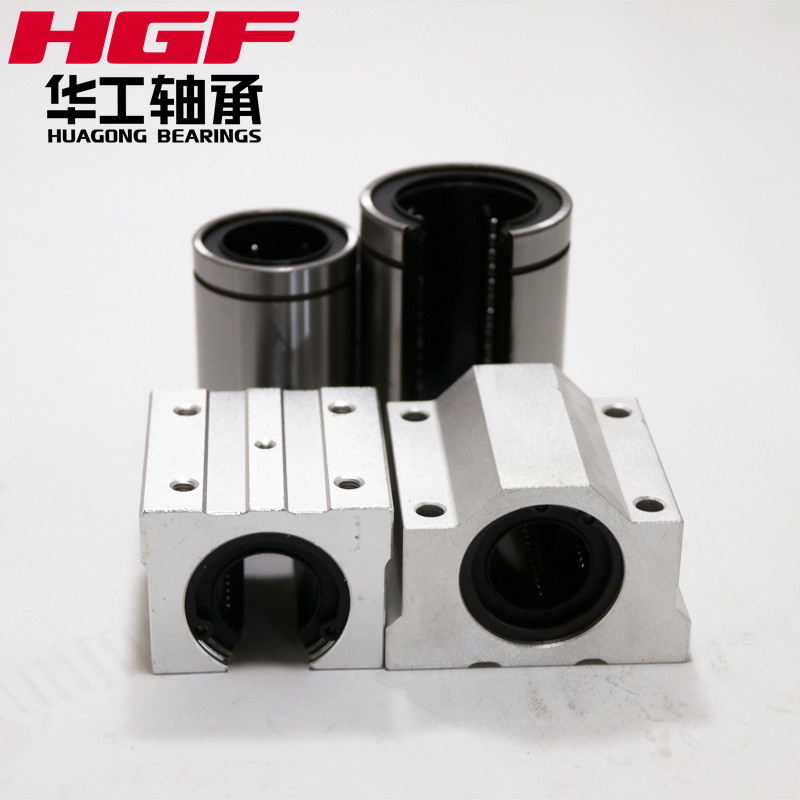

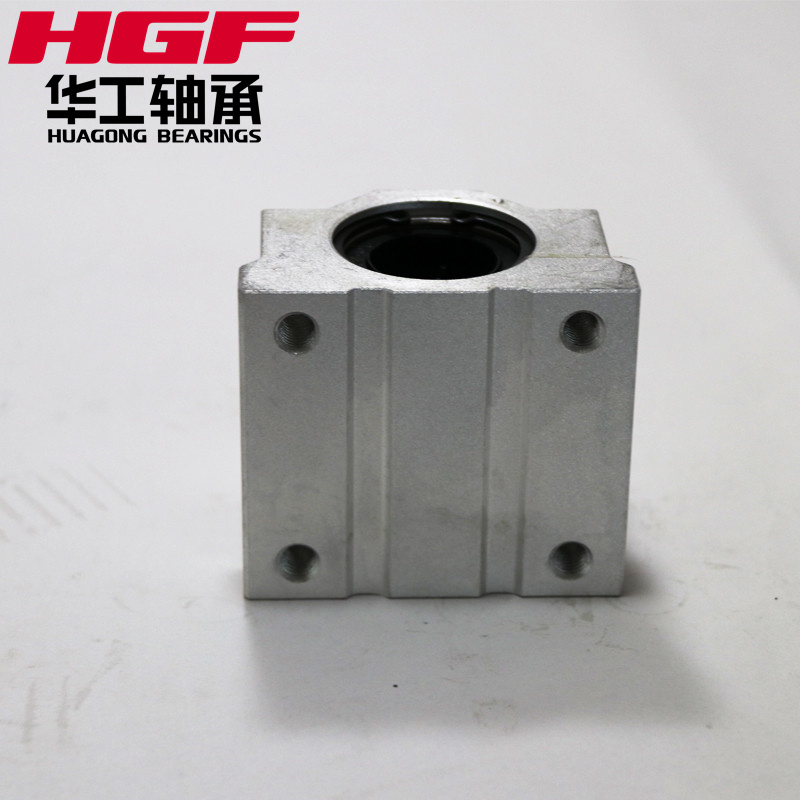

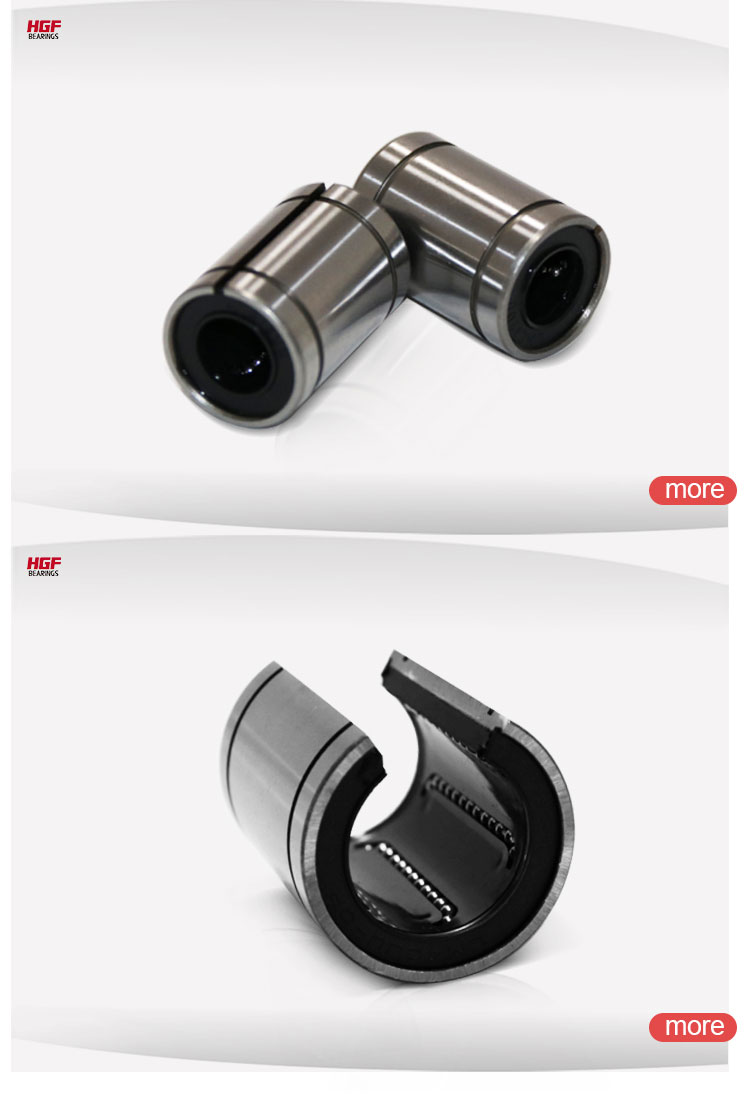

Picture of LM LME LMF LMK Linear Ball Bearings

Packing of LM LME LMF LMK Linear Ball Bearings

1. Bulk packaging = simple packaging and economic cost;

2. Neutral brand = no brand/your brand, white single box;

3. HGF brand, TCV brand, UGK brand, our own brand packaging box;

4. OEM, accept your brand box customizing;

About Production

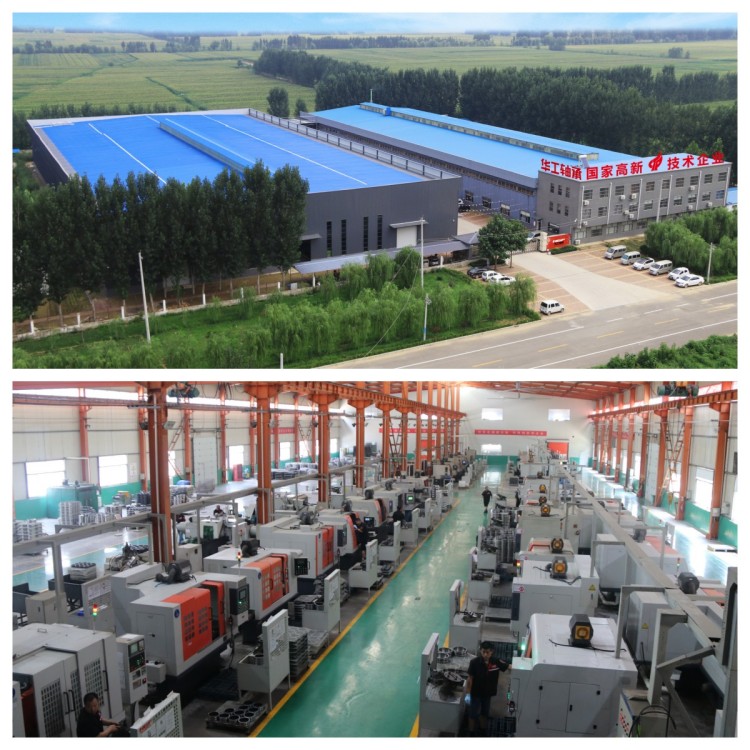

HGF factory was built on 2008, covering 30000 square meters, 2000 square meters workshops;

Our products passed ISO 9001, CE, SGS certificates etc; had exported more than 120 countries and 50 brand agents in the world;

QQ图片20220707164133_副本.jpg QQ图片20220707164133_副.jpg QQ图片20220707164133-.jpg

Our advantage:

Choose excellent steel raw material;

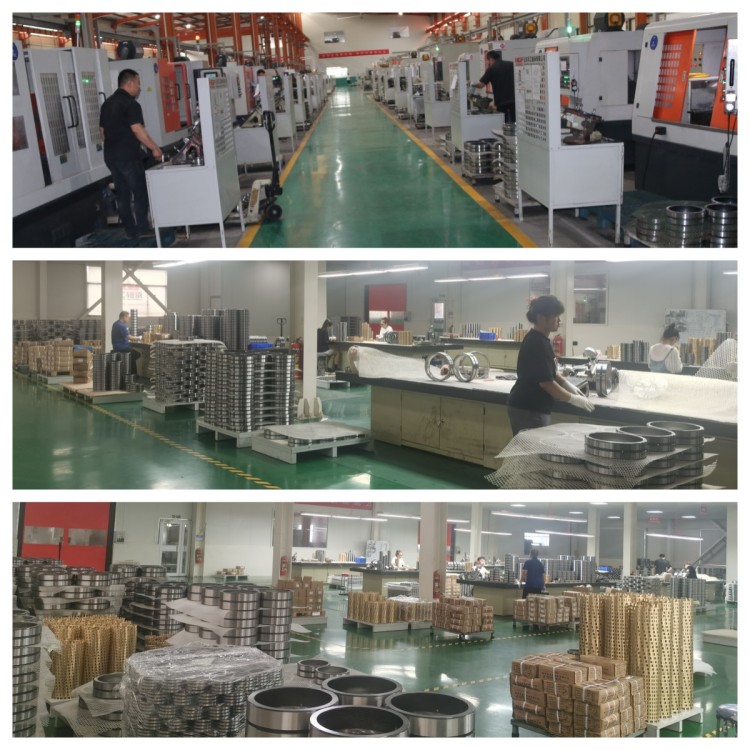

3 production lines and 60 sets machines, produce and assembling various types of bearings;

High-precision testing equipment; 20 professional quality inspection team;

1000M² packing workshop; 4 packing teams;

Intelligent storage, different types and sizes of bearings are stored separately.

Rich exporting experience, offer better shipping suggestion;


CONTACT US：

MIKE GUO：

TEL: 0086 531 82890388

EMAIL: hgzc@hgzc.com;

WHATSAPP & WECHAT: 0086 18805311522

SKYPE: live:jnbearing_1

Thanks for choosing us !!!
