2208 E M TVP Self Aligning Ball Bearing Price
Self-aligning ball bearing is a bearing equipped with spherical balls between the inner ring of two raceways and the outer ring whose raceway is spherical.
Features: Self-aligning ball bearings have two structures: cylindrical bore and tapered bore. The cage is made of steel plate, synthetic resin, etc. Its characteristic is that the outer ring raceway is spherical, with automatic alignment, which can compensate the errors caused by misalignment and shaft deflection, but the relative inclination of the inner and outer rings should not exceed 3 degrees.
Miniature series: 10x, 12x, 13x
General series: 12xx, 13xx, 22xx, 23xx
Uses: Self-aligning ball bearings are suitable for heavy load and impact index, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, rolling mills, mining, petroleum, paper, cement, sugar and other industries and general machinery.
2208 E M TVP Self Aligning Ball Bearing Price
It is widely used to heavy load and impact index, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, rolling mills, mining, petroleum, paper, cement, sugar and other industries and general machinery.

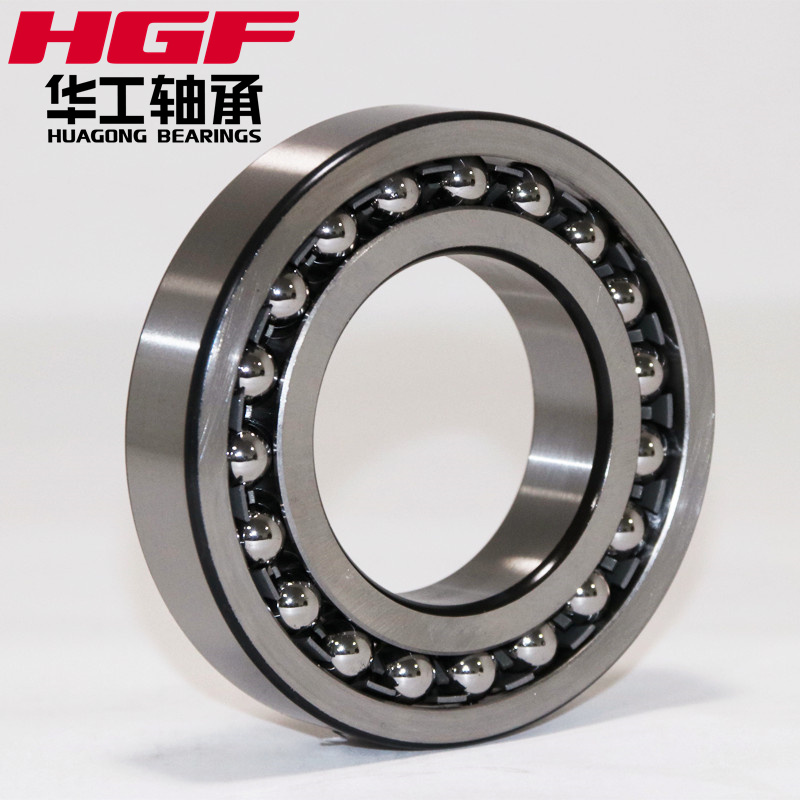

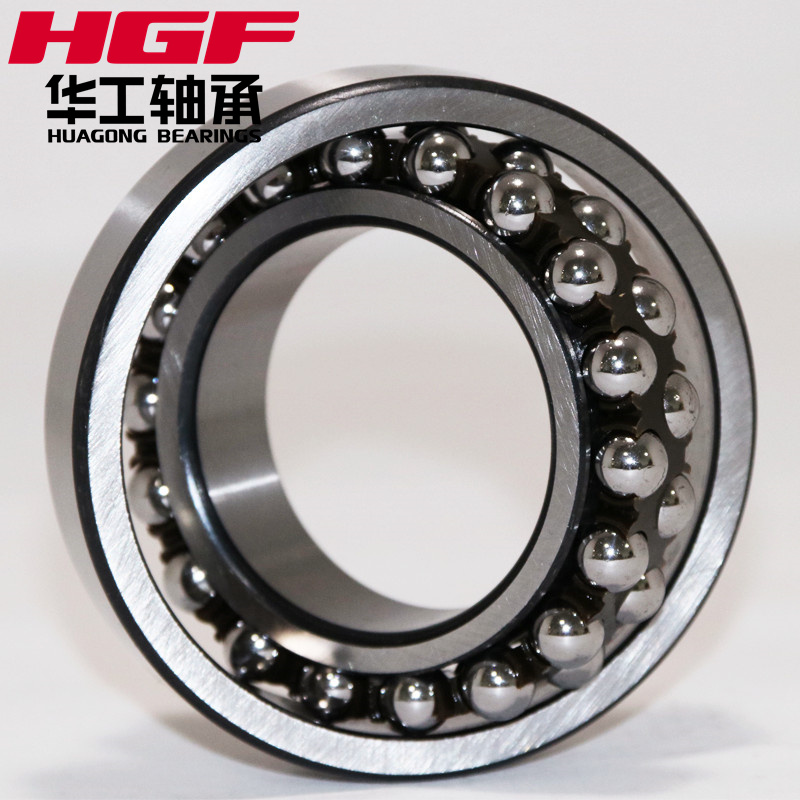

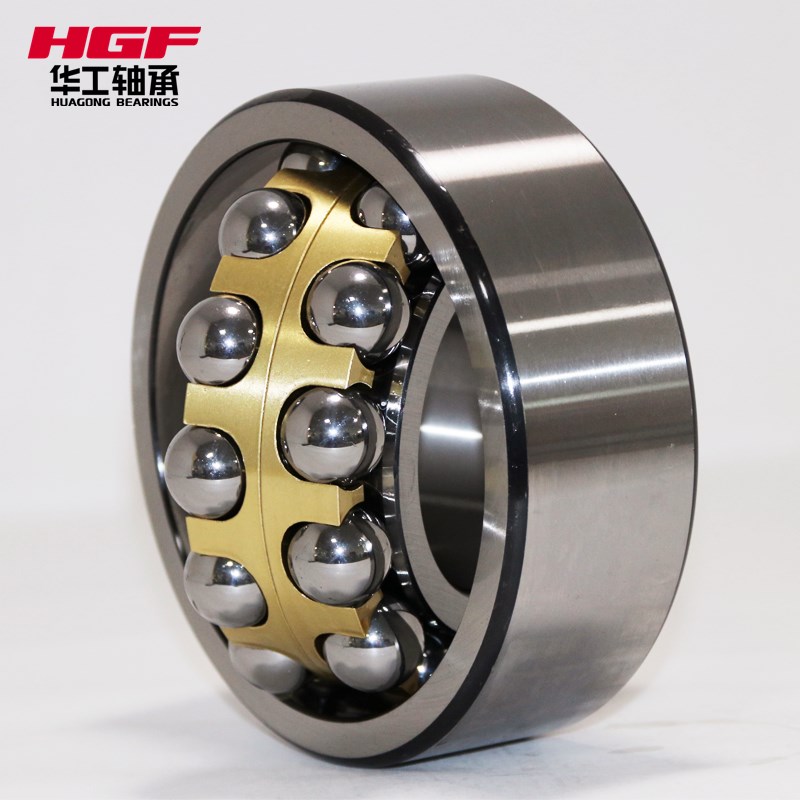

Picture of 2208 E M TVP Self Aligning Ball Bearing Price
Parameter of 2208 E M TVP Self Aligning Ball Bearing Price
Bore diameter (d) | 40 mm |
Outside diameter (D) | 80 mm |
Width (B) | 23 mm |
Basic dynamic load rating Cr | 31.9 KN |
Basic static load rating Cor | 10 KN |
Weight | ≈ 0.51 KG |
Packing of 2208 E M TVP Self Aligning Ball Bearing Price
1. Bulk packaging = simple packaging and economic cost;
2. Neutral brand = no brand/your brand, white single box;
3. HGF brand, TCV brand, UGK brand, our own brand packaging box;
4. OEM, accept your brand box customizing;
About Production
HGF factory was built on 2008, covering 30000 square meters, 2000 square meters workshops;
Our products passed ISO 9001, CE, SGS certificates etc; had exported more than 120 countries and 50 brand agents in the world;
Our advantage:
Choose excellent steel raw material;
3 production lines and 60 sets machines, produce and assembling various types of bearings;
High-precision testing equipment; 20 professional quality inspection team;
1000M² packing workshop; 4 packing teams;
Intelligent storage, different types and sizes of bearings are stored separately.
Rich exporting experience, offer better shipping suggestion;
